Double-Wing Container --- Modular Pop-Up Retail & Hospitality Unit Brief Description
Minimum order quantity: 1 set
- Overview
- Recommended Products

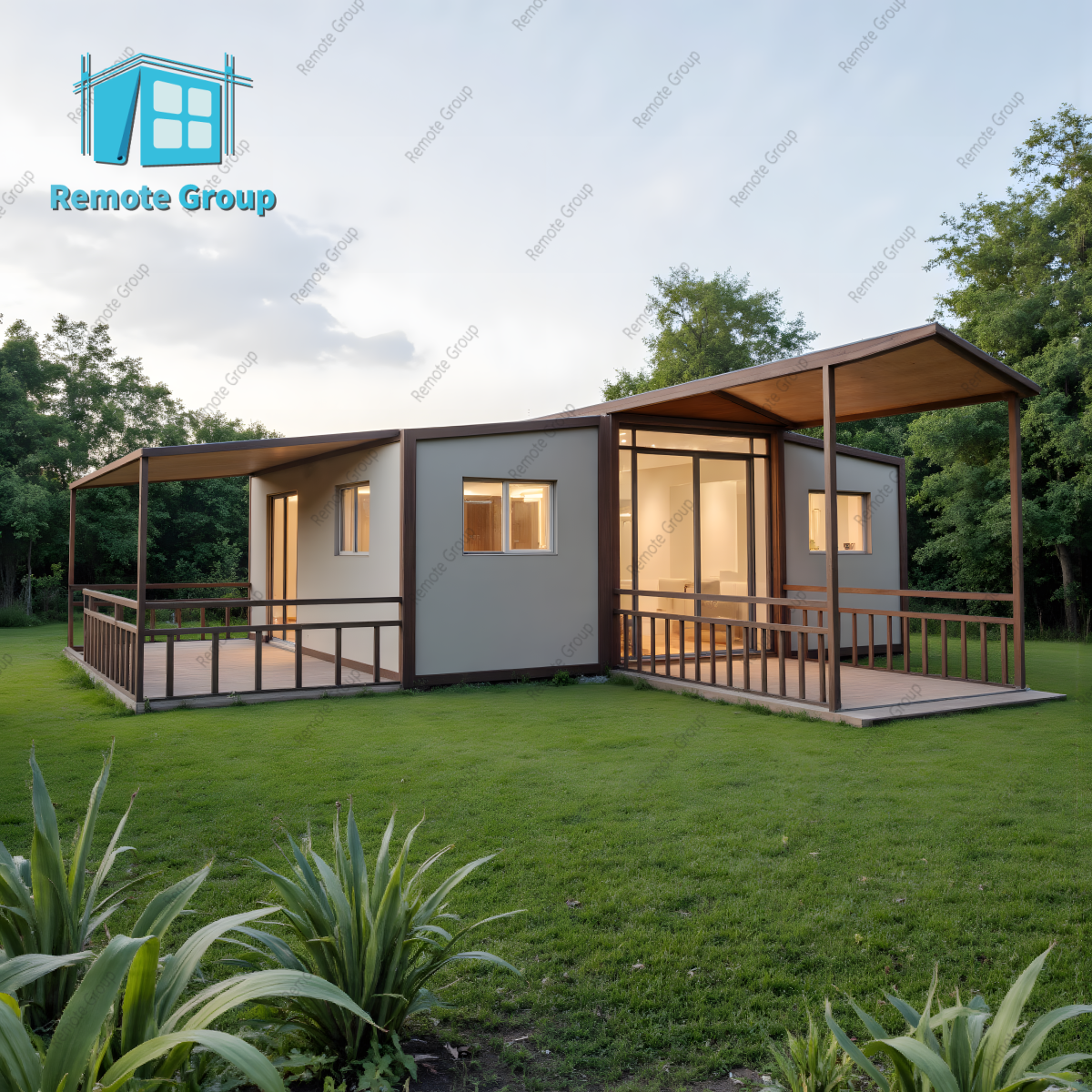

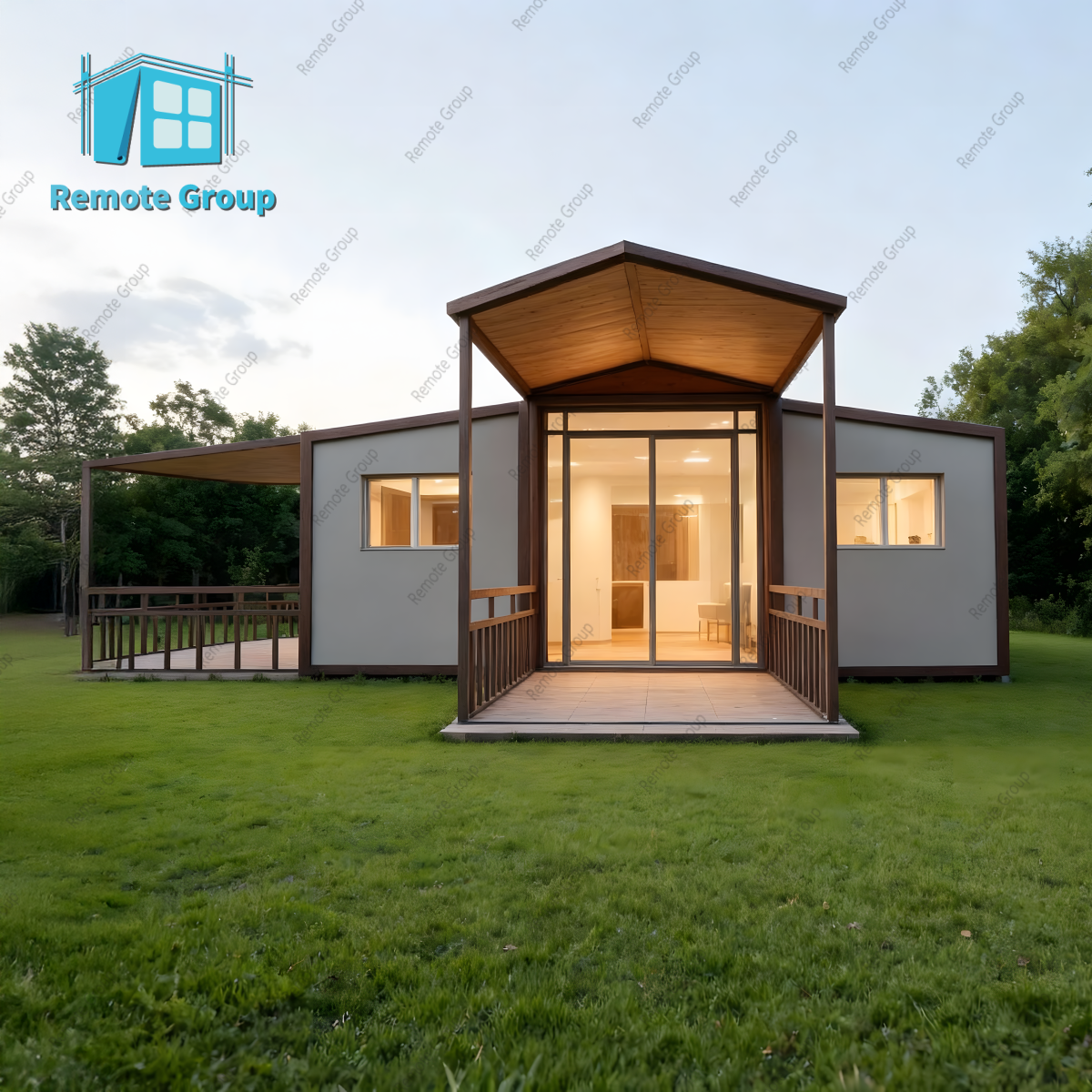

The Double-Wing Container is a purpose-built modular unit whose two side “wings” unfold to create an instant, high-impact storefront with expansive display space and customer flow. Based on a reinforced 20-ft or 40-ft steel frame, the system integrates hydraulic (or electric) lifting mechanisms, insulated wall panels, and pre-wired utilities to deliver a plug-and-play pop-up store, café, ticket booth, exhibition kiosk, or mobile showroom. Compared with traditional brick-and-mortar or tent structures, a double-wing design offers dramatically larger usable area, premium brand visibility, and truly rapid deployment—arrive, unfold, connect, and open for business.
Dual Folding Wings: Both sidewalls open upward or outward to form canopies and extended floors
Hydraulic/Electric Actuation: Safe, synchronized lifting with manual override; single-operator setup possible.
Thermal & Acoustic Envelope: Color-coated steel + rock wool or PU sandwich panels (typically 50–100 mm) for comfort and noise reduction.
Glazing & Visibility: Full-height tempered-glass fronts, sliding windows, and optional bi-fold doors maximize display impact.
Integrated Utilities: Pre-wired electrical (breaker box, LED strips/spotlights, exterior signage power), optional plumbing kit (sink, water inlet/outlet), and HVAC rough-in.
Modular Interior: Food-grade stainless counters, retail shelving, cash desk, menu boards, and cable raceways for quick reconfiguration.
Security & Durability: Lockable roller shutters or glass with multi-point locks; galvanized sub-frame; marine-grade paints for corrosion resistance.
Branding-Ready Surfaces: Smooth façades accept vinyl wraps, 3D logos, lightboxes, and digital screens.
| Module Sizes |
20-ft:6058 × 2438 × 2591 mm 40-ft:12192 × 2438 × 2896 mm |
| Structure | Q235/Q345 steel frame, welded columns and cross-members, forklift pockets, CSC-inspired corner castings for handling |
| Walls/Roof | color steel + PU/rock-wool core; interior finish with PVC wallboard or aluminum-plastic panels |
| Floor | 18–20 mm cement board + vinyl/anti-slip SPC; fold-down decks with anti-skid surface and adjustable support legs. |
| Doors/Windows | Tempered glass 5–8 mm; aluminum frames with EPDM seals; choice of sliding/hinged/bi-fold |
| Environmental Loads | Typical design wind load 0.5–0.7 kN/m²; snow load 0.3–0.5 kN/m² (project-specific verification available) |
| Compliance | Fire-resistant insulation options; food-contact finishes for F&B; local code alignment upon request |
Retail Pop-Ups: Apparel, footwear, lifestyle, cosmetics, electronics, books, and seasonal markets.
Food & Beverage: Coffee kiosks, bubble tea, dessert bars, street-food kitchens, event catering lines.
Tourism & Culture: Scenic-area souvenir shops, museum ticketing, festival merch booths, stadium concessions.
Real Estate & Sales Suites: Property marketing centers, model-home showcases, short-term leasing offices.
Education & Community: Campus bookstores, mobile libraries, maker fairs, NGO outreach.
Industrial & Services: Site induction rooms, tool counters, mobile service centers for after-sales support.
